ARON电磁阀AD3E系列资料
- 2016-12-30 14:45:00
- 徐耀滨 原创
- 3709

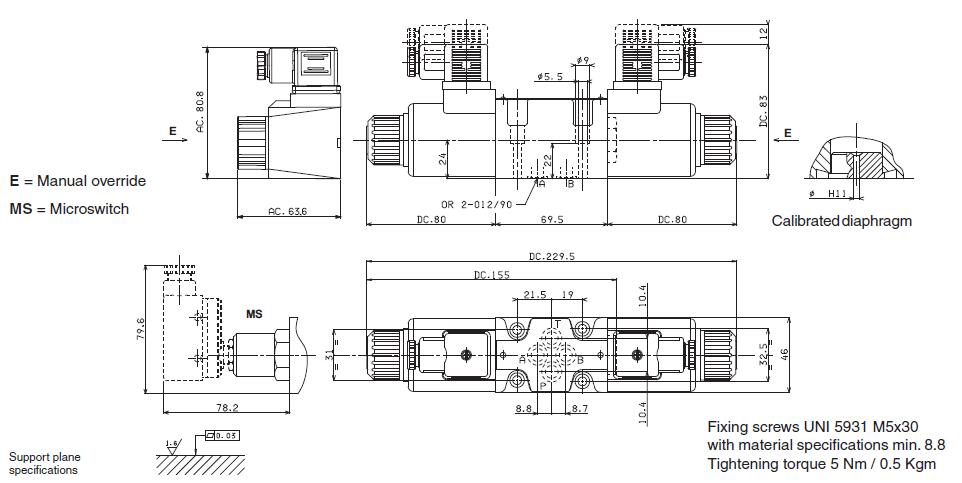

A max. counter-pressure of 8 bar at T is permitted
for the variant with a microswitch (MS).
(*) DC: Dynamic pressure allowed for 2
millions of cycles.
AC: Dynamic pressure allowed for 350.000
of cycles. For dynamic pressure of 100 bar
are allowed 1 milion cycles.
Max. pressure port P/A/B 350 bar
Max. pressure port T (for DC) see note (*) 250 bar
Max. pressure port T (for AC) see note (*) 160 bar
Max. fl ow 80 l/min
Max. excitation frequency 3 Hz
Duty cycle 100% ED
Fluid viscosity 10 ÷ 500 mm2/s
Fluid temperature -25°C ÷ 75°C
Ambient temperature - 25°C ÷ 60°C
Max. contamination level class 10 in accordance
with NAS 1638 with fi lter s25 ≥75
Weight with one DC solenoid 1,65 Kg
Weight with two DC solenoids 2 Kg
Weight with one AC solenoid 1,31 Kg
Weight with two AC solenoids 1,72 Kg
ARON电磁阀AD3E系列是属于方向控制阀，上海维特锐专业给你提供原装进口的ARON电磁阀，更多ARON电磁阀产品了解可以拨打我们的咨询热线:
